Bar Grating Stair Treads

Steel & Stainless Steel - Tread Width Design Details

Steel & Stainless Steel - Tread Width Design Details

Welded

Steel & Stainless Steel

Steel & Stainless Steel - Tread Width Design Details

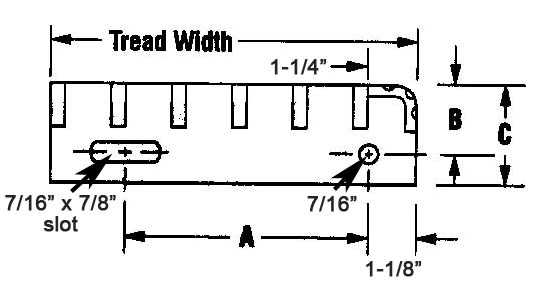

End Plate Dimensions
19W4/19P4/19S4
19SW4/19SP4/19SS4
1-3/16" Center to Center of Bearing Bar
Grating Depth Up To 1-1/4” 1-1/2” to 1-3/4”
Dimension “A” See Tread Width Table
Dimension “B” 1-3/4” 2-1/4”
Dimension “C” 2-1/2” 3”
Tread Width (Including Nosing)
19W4/19P4/19S4
19SW4/19SP4/19SS4
1-3/16" Center to Center of Bearing Bar
No. of
Bearing Bars		 1/8” Bearing Bar Depth 3/16” Bearing Bar Depth Bolt Hole Spacing Dimension “A”
5 6-1/8” 6-3/16” 2-1/2”
6 7-5/16” 7-3/8” 4-1/2”
7 8-1/2” 8-9/16” 4-1/2”
8 9-11/16” 9-3/4” 7”
9 10-7/8” 10-15/16” 7”
10 12-1/16” 12-1/8” 7”
